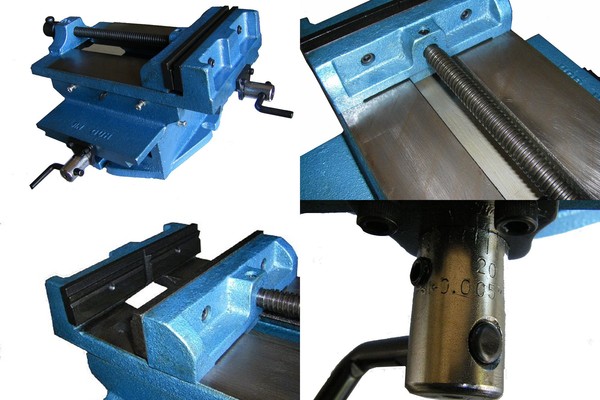

CROSS SLIDE VISE SKC-316
Design of Multi-Function with Jaw
Jaw Hardness : HRC50°
Use FCD45 as the Material for Vise Body.
US PAT NO.: 4953839 PAT NO.: 61008 / 111248

Our vise: Dove-tail Structure	After Clamp
General vise: Fix With Iron Piece In Base.	After Clamp

For general drilling vise, the active side is designed to fix with iron piece.
That is an improper design because the screw will loose easily and cause the object unstable. For our cross vise SKC-316, we design Dove-tail structure. This design protect the object stable during manufacture process and assure the stability of the working object.On the other hand for our SKC-316 cross vise jaw, we designed multi-function, V-groove easily to clamp round object and L-groove to clamp sheet object.

The scale of handle: 0.005” 0.005”*25.4=0.127mm
When round a scale X(Y)axis moving 0.127mm
25 scale will be a round 25*0.127=3.175mm
When a round handle the X(Y) will moving 3.175mm
